NON - WOVEN WINDING

REWINDER - AUTOMATIC ROLLING MACHINE - FABRIC UNWINDER WITH MOBILE CARRIAGE Zoom & Gallery
A 45-4 (Not Available)
Brand: SIPAX

Automatic Rolling Machine - A45-4.

The machine allows the fabric to be unrolled and re-rolled onto a cardboard tube with selvage alignment controlled by electric photocells.

There is a luminous surface with adjustable inclination with high-efficency LED lighting and adjustable intensity.

The measurement obtained by an encoder located on the pullingcylinder and displayed on the touch screen, from which it is possible to access all the settings.

The working speed varies from 0 to 50 MT/minute.

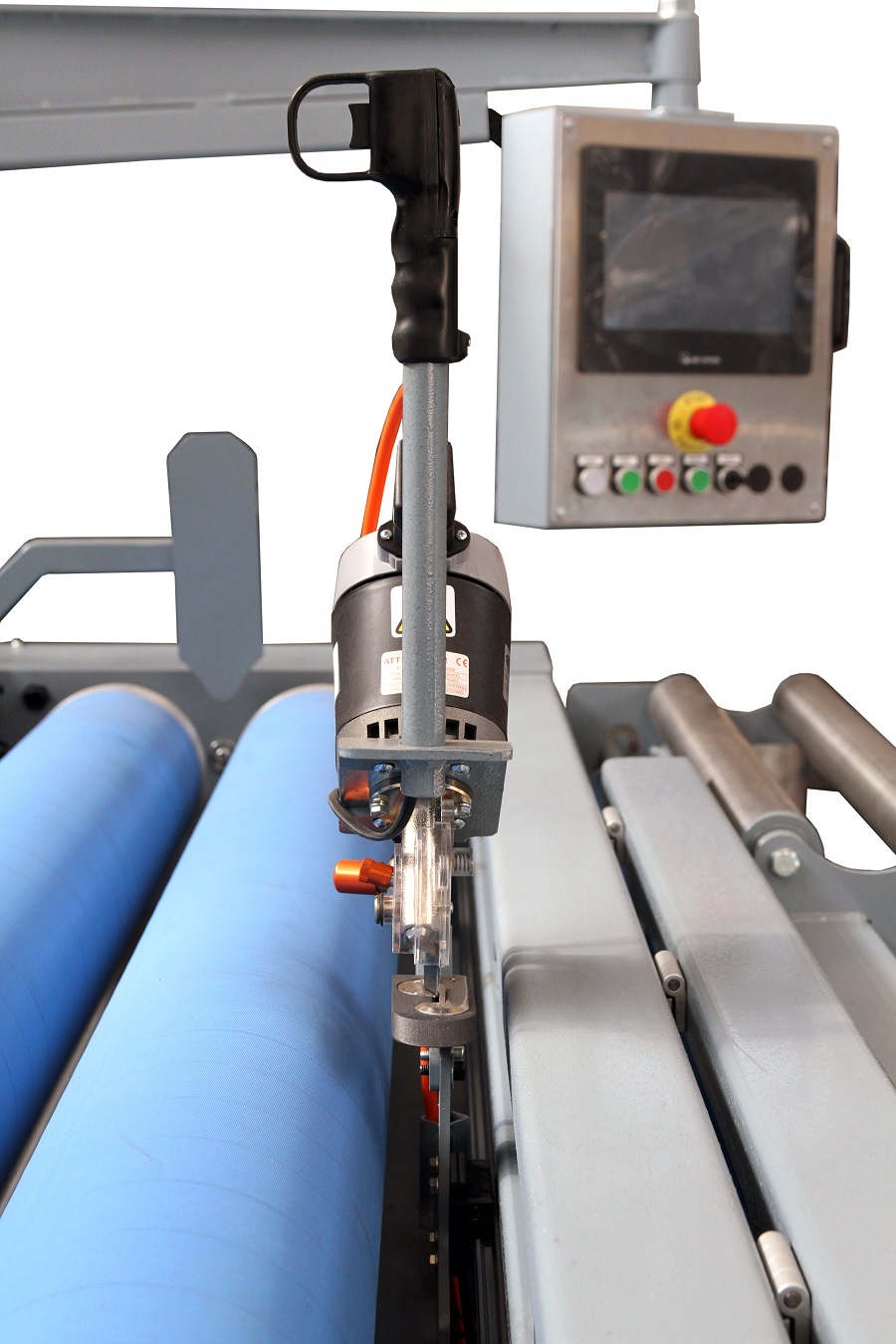

The fabric is cut using electric cutter sliding on a recirculating ball guide.

There is the possibility of making it a 4.0 ready machine.


Larghezza 260 cm
Altezza 220 cm
Profondità 210 cm
Weight 500 Kg

Send this page to a friend

Product linked
PACKAGING DEVICE
DISPOSITIVO IMBALLAGGIO
Brand: SIPAX
Packing device.
This packaging device is made by two idle roller where one or more nylon film will be placed on top, which will be use to close and pack the fabric....
ROLL LOCK SHOVEL
PALETTE A RICIRCOLO DI SFERE
Brand: SIPAX
Recirculating ball vanes.
This type of roll stopper pallets are composed by a rail, a carriage and a brake blok.
Thanks to this composition it allows a more precise locking on the fabric reel....
LUMINOUS CONTROL TABLE
PIANO DI CONTROLLO A/45-2
Brand: SIPAX
Luminous control table.
Luminous control desk 300 X 2000 millimeters....
LUMINOUS CEILING LIGHT
PLAFONIERA LUMINOSA A/45-2
Brand: SIPAX
Luminous ceiling light.
Ceiling light with a neon lamp....
ELECTRIC CUTTER
TAGLIERINA
Brand: SIPAX
Electric cutter.
Electirc cutter sliding on a guide to make cuts on the fabric....
CUTTER
TAGLIERINA CON DOPPIA BATTERIA
Brand: SIPAX
Cutter with Double Battery.
Cutter for manual fabric cutting.
It can be used on multiple machines as it is not tied to the machine, and is much more compact than standard cutters.
There are two rechargeabl eand interchangeable batteries, so that y...
TOUCH SCREEN A/45 - DISPLAY
TOUCH SCREEN A/45
Brand: SIPAX
Touch-screen A45.
On this touch-screen there are, in addition to the touch display, also various buttons including: Commands, Emergency button, Forward, STOP, Backward and the speed selector....
